Tm1000 air leak

Postby valboskie » Mon Feb 20, 2017 3:26 am

Hi there im new to the forum and looking for some help and advice.
My tm1000 has a skow leak it looses about 50bar a week.

I would like to change tbe o rings in it but have no clue where to start.
I have never taken a tm1000 apart and was hoping someone could give me a step by step guide or does anyone know of a video i could watch of the process.

Also does anyone know all the oring sizes types ect

Any help would be Greatly appreciated

I have attached photos if anyone can use them to mark whats what and how to take apart
http://s833.photobucket.com/user/valbos ... ary/tm1000

Cheers
David

User avatar
Ca_Varminter
Site Admin
Site Admin
Posts: 5629
Joined: Sun Apr 17, 2005 6:48 pm
Location: N. California, USA

Re: Tm1000 air leak

Postby Ca_Varminter » Mon Feb 20, 2017 8:54 am

Here is a RAW side-lever in pieces...
The work is being done by Our Man Swift220....

The internals is just like any Rapid....
You can refer to my tech sticky post or do search for the many service posts done on this subject........
Also RAW has a pdf on removing the main valve...

The first place to start when checking for a leak..
All the external sources. To do this, just use a simple soap solution.
Spray/drip it on to all junctions and bleed hole on the reg....

If you happen to located around the tube/reg-QF junction...remember this is also two more O-rings in the QF housing..

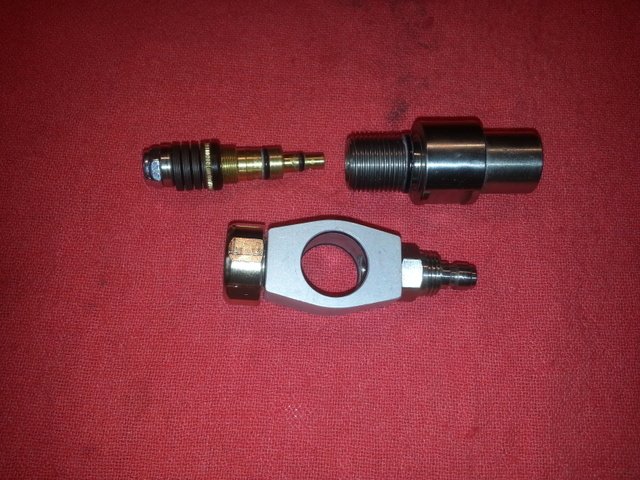

here is a photo of my straight. not 90 degree Raw QF. You can just see the 2 O-ring in the housing..it just slides off the reg body!

So if everything seems to be air-tight on the outside... Then it must be the internals....
The only source of leaks is the valve-body O-rings or the Valve-stem..
The parts need to pulled and check.....

Btw.... Just thinking about this....
If you track sown the leak to the internals...

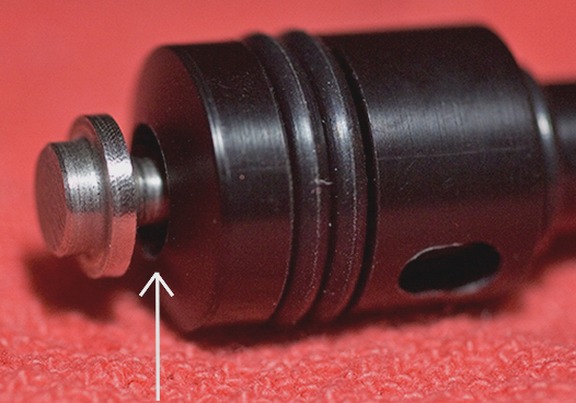

The source could be the burnt bronze filter they been installing for awhile now!!
They are a Pain... small pieces break off and cause scratches/gouges to the valve-body on the sealing area where the valve-stem seats!

hth,
let me know if I can help you More!

Stuart

valboskie
Posts: 3
Joined: Fri Feb 17, 2017 7:49 am
Location: Glasgow Scotland

Re: Tm1000 air leak

Postby valboskie » Tue Feb 21, 2017 5:17 am

Thanks for the info stuart
I will try and locate the leak first its so slow hopefully it shows easily.
Any idea of the oring sizes
Cheers
David

User avatar
Ca_Varminter
Site Admin
Site Admin
Posts: 5629
Joined: Sun Apr 17, 2005 6:48 pm
Location: N. California, USA

Re: Tm1000 air leak

Postby Ca_Varminter » Tue Feb 21, 2017 7:47 am

From Our friends over in the UK......


Stuart
